First Article Inspection (FAI) in Aerospace Manufacturing

First Article Inspection is the formal verification step that confirms a manufacturing process can consistently produce parts meeting all engineering requirements. In aerospace, this process determines whether a supplier’s production methods, tooling, and materials will deliver conforming hardware before committing to full-rate production or after a major change to design, process, or facility.

The First Article Inspection Report, commonly called the FAIR, serves as the documented evidence of this validation. It captures material certifications, dimensional measurements, special process approvals, and functional test results in a structured format aligned with AS9100-compliant quality management systems. For aerospace organizations, the FAIR is both a quality gate and a long-term traceability record.

This pillar guide from Connect 981 covers the complete FAI landscape: when first article inspection is required, how to execute the FAI process, what documentation AS9102 demands, how to maintain traceability across the supply chain, and how digital tools reduce FAI cycle time without sacrificing compliance.

What is First Article Inspection (FAI)?

First article inspection in aerospace is a formal, documented verification that the manufacturing process, tooling, methods, and suppliers can produce a part that conforms to all engineering, material, and functional requirements. The inspection evaluates a production-representative sample manufactured under normal production conditions, not a hand-finished prototype or engineering sample.

The critical distinction is that FAI evaluates the manufacturing system, not just a single part. The goal is to prove process capability and consistency before mass production begins. A successful FAI establishes the production baseline and becomes the reference for any future partial FAI or delta FAI activities.

Aerospace FAI is governed by SAE AS9102, with the latest revision (AS9102D) released in March 2024. This standard defines the documentation structure, required content, and acceptance criteria that suppliers must follow.

Key terms used throughout this guide:

• First article inspection: The verification event that validates a manufacturing system’s capability
• FAIR: The documented report package containing Forms 1, 2, and 3 plus supporting evidence
• AS9102: The SAE standard governing FAI documentation requirements
• Ballooned drawing: Engineering drawing with numbered identifiers linking each characteristic to inspection data
• Characteristic accountability: The systematic verification and recording of all design features
• Key characteristics: Features with highest risk to product performance or safety requiring special controls

Unlike routine in-process or final inspection, FAI is event-driven. It occurs at specific triggers such as new part introduction, major design changes, or supplier transitions. The inspection scope is exhaustive, covering 100% of drawing characteristics rather than statistical sampling.

Regulatory and Standards Context for FAI

First article inspection matters to aerospace regulators, primes, and certification bodies because it provides documented evidence that production processes meet design intent before hardware enters service. The FAI requirement flows from quality standards through purchase orders into contractual obligations.

The regulatory framework includes:

• AS9100 series: The primary aerospace quality management system standard, with AS9102 referenced in Clause 8.5.1.3 for production process verification
• EN9100 and JISQ9100: European and Japanese equivalents that align with AS9102 principles
• SAE AS9102: The specific standard for FAI documentation, developed by the International Aerospace Quality Group (IAQG)

OEMs like Boeing, Airbus, Lockheed Martin, and Rolls-Royce flow down FAI requirements through purchase orders and quality clauses. These clauses typically reference AS9102 explicitly and may add customer-specific requirements for FAIR format, approval workflows, or delegated representative involvement.

FAI connects to multiple regulatory environments:

• FAA and EASA production approvals under 14 CFR Part 21 and European equivalents
• US Department of Defense contracts subject to DFARS clauses requiring documented first-article verification
• Export-controlled work under ITAR or EAR regulations

For organizations pursuing AS9100 certification, FAI records serve as evidence of process control and design understanding during audits. Auditors specifically verify linkage between the first build and ongoing production control plans.

In aerospace, FAI (AS9102) often integrates with Advanced Product Quality Planning per AS9145. The FAI serves as the production validation step in APQP Phase 4, demonstrating that the production process can meet design specifications and quality requirements.

When is First Article Inspection Required?

Timing and triggers for FAI are defined by AS9102 and customer contracts. Understanding these triggers is essential for compliance and for avoiding rework when a FAIR is rejected for scope issues.

Typical triggers for a full FAI per AS9102 and common OEM practices:

Trigger

Description

New part number

First production of a new design or purchase from a new supplier

New supplier

First production by a supplier, regardless of prior part history

New facility

First production at a new manufacturing location

New methods/tooling

Adoption of manufacturing methods or tooling differing from approved baseline

Material changes

New raw material forms or supplier sources

Engineering design changes often require FAI. The extent depends on what changed:

• Full FAI: Required when changes affect multiple characteristics or fundamental process assumptions
• Partial FAI: Appropriate when only a subset of characteristics changed (e.g., two bore diameters at Rev C)
• Delta FAI: Used when production transfers between facilities or when tooling relocates with unchanged manufacturing sequence

Process change triggers include major changes in NC programs, process routing, manufacturing sequence, special processes (heat treat, plating, welding), or raw material specifications.

Many OEM supplier quality manuals mandate FAI after a production lapse of 24 months or more. This reflects concern that knowledge degradation, personnel turnover, and equipment drift during extended gaps may introduce undetected changes to process capability.

A separate cluster article on when FAI is required expands on these triggers with specific AS9102D clause references and OEM examples.

FAI vs PPAP and Other Approval Processes

Readers often confuse first article inspection FAI with the Production Part Approval Process. Both serve as quality gates, but they differ in scope and origin.

PPAP originated in the automotive industry as part of the APQP framework. It covers a broad range of deliverables: process capability studies, measurement system analysis, control plans, and long-term production readiness documentation.

FAI (AS9102) focuses heavily on characteristic verification and traceability for a single build event. It validates that a manufacturing process can produce conforming parts but does not inherently require statistical capability studies or control plan submissions.

Key distinctions:

Aspect

FAI (AS9102)

PPAP

Primary focus

Characteristic verification, material/process traceability

Broad production readiness

Documentation

Three AS9102 forms plus attachments

Up to 18 elements including capability studies

Industry origin

Aerospace (IAQG)

Automotive (AIAG)

Scope

Single build event validation

Long-term production capability

FAI can be considered a subset of a full PPAP package. However, aerospace primes may require both AS9102 FAIR and additional PPAP or AS9145 deliverables for complex programs.

Common aerospace customer requirements include:

1. AS9102 FAIR only: Standard for many detail parts and lower-tier suppliers
2. AS9102 plus capability studies: Required for key characteristics on critical assemblies
3. Full APQP/PPAP evidence: Mandated for new product development programs with extensive design responsibility

The cluster article FAI vs PPAP compares required documents line-by-line across both approval process frameworks.

FAI Documentation and AS9102 Forms

The FAIR is the core deliverable of first article inspection. Unless a customer-specific template is mandated in the purchase order or supplier quality manual, the three AS9102 forms serve as the documentation standard.

The three forms work together to establish complete traceability:

Form

Name

Purpose

Form 1

Part Number Accountability

Identifies the part, revision, FAI type, and reason

Form 2

Product Accountability

Documents materials, special processes, and tests

Form 3

Characteristic Accountability

Records inspection results for every balloon

A ballooned drawing or 3D digital product definition identifies every characteristic with unique balloon IDs. These IDs map directly to line items on AS9102 Form 3, creating traceability between visual part definition and inspection results.

Common supporting documents attached to a FAIR package:

• Raw material certificates of conformance and mill test reports
• Special process certifications (NADCAP approvals for heat treat, NDT, welding)
• Functional test reports (pressure tests, electrical continuity)
• Process flow diagrams or routing sheets
• Setup sheets and work instructions
• Nonconformance reports and corrective actions if applicable
• Customer-approved concessions or deviations

Key characteristics and critical-to-quality features must be explicitly identified using designators like “KC,” “CC,” or customer-specific markings. These designations signal which features warrant special controls during production.

Connect 981 can host digital FAIR templates aligned with AS9102D, auto-populate fields from ERP and MES data, capture ballooned drawing links, and enforce mandatory attachments before FAIR submission.

A dedicated cluster article on FAI documentation requirements walks through each field in AS9102 Forms 1–3 with completed examples.

AS9102 Form 1 – Part Number Accountability

Form 1 establishes the identity and context for the FAI. Required content includes:

• Part number and nomenclature
• Drawing or model number with revision level
• FAI type (full, partial, delta)
• Reason for FAI (new part, design change, facility transfer, production lapse)
• Date of FAI and effective date of any triggering change

Form 1 distinguishes between Detail FAI (single-component parts manufactured as a discrete unit) and Assembly FAI (multi-component assemblies with a bill of materials).

For assemblies, Form 1 must list:

• Each lower-level part number
• FAIR reference if an FAI exists for that component
• Serial or lot numbers to maintain traceability across levels

This hierarchical approach ensures that if a sub component fails FAI or has a nonconformance, the impact on overall assembly acceptance is transparent and traceable.

AS9102 Form 2 – Product Accountability (Materials and Processes)

Form 2 documents raw materials and special processes used to manufacture the first article.

Raw material entries include:

• Material designation (e.g., 7075-T6 aluminum plate, Ti-6Al-4V bar stock)
• Material specification reference (e.g., AMS-QQ-A-250/12 for aluminum)
• Heat lot or batch numbers for traceability
• Certificate of conformance reference

Special process entries include:

Process Type

Example Specification

Required Documentation

Anodizing

AMS2469, Type II or III

Process spec, supplier code, approval status

Passivation

AMS2700

NADCAP certification, lot number

Heat treatment

AMS specification with temp/time

Furnace certification, chart records

NDT

Customer or NADCAP spec

Operator certification, inspection report

Welding

AMS or customer spec

Filler material, heat input, post-weld treatment

Functional tests such as pressure tests, torque tests, or electrical continuity for harnesses are linked via procedure numbers and test report identifiers.

Example row for a machined strut fitting:

Material

Spec

Heat Lot

CoC Reference

7075-T651 Aluminum Plate

AMS-QQ-A-250/12

H-2024-0847

CoC-2024-0847-A

AS9102 Form 3 – Characteristic Accountability

Form 3 is typically the most time-consuming element of FAIR preparation. Each line corresponds to a characteristic from the ballooned drawing.

Required fields for each characteristic:

Field

Description

Balloon number

Links to ballooned drawing

Drawing sheet and zone

Location reference for multi-sheet drawings

Characteristic description

“Bore OD,” “Thread M10x1.5,” “Flatness of seating surface”

Specification or tolerance

Nominal dimension with tolerance band

Key characteristic designator

KC, CC, or standard feature

Inspection method

CMM, micrometer, visual, functional test

Measured result

Actual numerical value or attribute result

Gage ID

Traceable to calibration records

Acceptance status

Accept, reject, or conditional

Characteristics are recorded as either attribute data (pass/fail for thread presence) or variable data (numerical measurement for bore diameter). Using the correct data type ensures accuracy and supports process control.

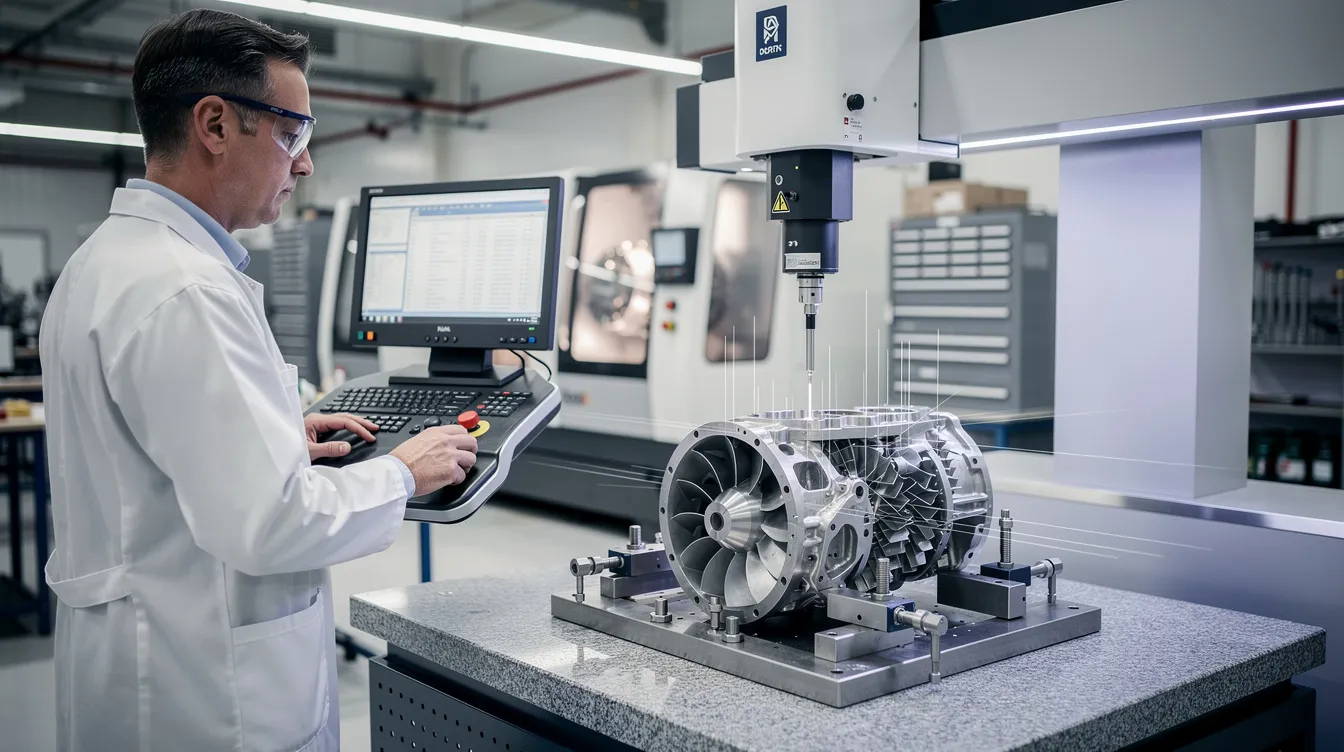

Inspection methods may include CMM, hand tools (micrometers, calipers), optical comparators, calibrated tools, or automated scanning equipment. Gage ID and calibration state must be traceable to ISO 17025 labs where applicable.

Manual Form 3 population using spreadsheets is error-prone. Connect 981 can ingest CMM output files and auto-fill inspection results linked to balloon IDs, reducing transcription errors and preparation time.

Raw Material and Dimensional Records in FAI

Material and dimensional integrity together determine whether the first article is acceptable and reliable in service. Both require rigorous documentation.

Raw material record requirements:

• Mill test reports documenting chemical composition and mechanical properties
• Certificates of conformance from material suppliers
• Traceability to heat lot numbers and purchase orders
• For critical materials (titanium forgings, composite prepreg), complete mechanical test data

Aerospace-specific scenarios demand heightened traceability. Titanium forgings for engine mounts require heat lot documentation linking specific material to the first article serial number. Composite prepreg materials have shelf-life limitations requiring lot tracking to ensure out-of-life material is not incorporated.

Dimensional record requirements:

• 100% of dimensions on the drawing for FAI
• GD&T features including flatness, position, runout, and perpendicularity
• Surface finish measurements where specified
• Thread verification using appropriate gages

Common measurement tools in aerospace FAI:

Tool Type

Application

CMM

Complex geometry, GD&T features, high-precision dimensions

Portable arms

Large parts, field measurements

Laser scanners

Complex surfaces, rapid data capture

Pin gages

Go/no-go verification of holes

Thread gages

Pitch and major diameter verification

Hardness testers

Material property verification per spec

Dimensional records must include gage IDs and calibration due dates. Inadequate metrology control is a frequent audit finding. A gage out of calibration at time of measurement can invalidate FAI results for that characteristic.

The cluster article on FAI traceability explores how raw material, process, and dimensional records tie into serialized part histories over an aircraft’s service life.

Operational Execution: The FAI Workflow in Aerospace

The FAI workflow spans multiple functions and requires coordination between quality, manufacturing engineering, supply chain, and the customer. Understanding the operational sequence reduces cycle time and prevents rework.

Planning phase activities:

• Review contract and purchase order quality clauses to confirm FAI scope
• Identify OEM-specific FAIR format or submission portal requirements
• Hold pre-FAI meeting with quality, manufacturing engineering, and supply chain
• Confirm latest drawing revision and specifications are available

Manufacturing engineering planning:

• Develop process routing and machine/tool selection
• Identify key characteristics and inspection methods
• Create digital work instructions or travelers specific to FAI build
• Verify special process approvals are current (NADCAP certifications)

The first article must be manufactured under normal production conditions using approved programs, fixtures, materials, and qualified personnel. FAI performed on engineering samples or under special lab conditions does not validate the actual production process.

Inspection and documentation execution:

• Balloon the drawing with unique characteristic identifiers
• Execute dimensional, material, and functional tests per inspection plan
• Capture results with full traceability: gage IDs, calibration status, inspector identification
• Document any nonconformances and link to corrective actions

Review and approval sequence:

• Internal quality review for accuracy and completeness
• Customer or delegated representative submission
• Response to clarification requests within required timeline
• Final sign-off before rate production release

Connect 981 orchestrates this workflow end-to-end, from digital traveler creation and step-by-step work instructions to automated FAIR compilation and customer portal submission.

Typical Step-by-Step FAI Process

This sequential checklist reflects what quality and manufacturing engineers execute during a complete FAI:

1. Confirm FAI requirement and scope: Review PO quality clauses and determine full, partial, or delta FAI type
2. Gather latest design data: Obtain current drawing revision, 3D model, specifications, and engineering change notices
3. Balloon the drawing/model: Assign unique identifiers to every characteristic per customer conventions
4. Define inspection methods and sampling: Specify gages, CMM programs, and measurement approach for each characteristic
5. Schedule and build the first article: Execute manufacturing plan using standard production processes and qualified personnel
6. Perform inspections and tests: Measure all characteristics, conduct functional tests, verify material properties
7. Compile AS9102 Forms 1–3: Populate all fields with full traceability to gages, materials, and processes
8. Attach supporting documents: Include CoCs, process certifications, test reports, and any nonconformance records
9. Internal review and sign-off: Independent verification by quality engineer or supervisor
10. Customer submission and response: Transmit FAIR via agreed method and respond to questions within timeline
11. Archive FAIR and link to work orders: Store approved FAIR with connection to serial numbers and purchase orders

Coordination touchpoints occur at planning (scope agreement), mid-build (observation of critical steps), and review (internal verification before customer submission). Any nonconformances discovered during FAI must be documented with corrective actions, even if the FAIR is approved with concessions.

Delta FAI and Partial FAI in Practice

Delta and partial FAIs avoid redoing a full first article inspection when only limited changes have occurred. Both maintain compliance while reducing redundant work.

Partial FAI focuses only on characteristics affected by a change. For example, if drawing Rev B changes only two bore diameters and a tapped hole position, the partial FAI measures only those three features while referencing the prior full FAIR for unchanged characteristics.

Delta FAI is a customer- or OEM-defined variation used when:

• Production transfers between facilities (Wichita to Montreal)
• Tooling relocates to new equipment
• Previously approved processes are updated within defined tolerances

Documentation expectations for both types:

Requirement

Partial FAI

Delta FAI

FAIR type statement

“Partial” clearly stated

“Delta” per OEM definition

Original FAIR reference

Required

Required

Scope definition

Changed characteristics only

Facility/equipment changes

Supporting evidence

Process documentation for changes

Equipment qualification records

Concrete example: Moving a machining operation from Plant A to Plant B in 2027 would trigger a delta FAI capturing facility-related changes while referencing the original FAIR from the initial production baseline.

Connect 981 versions FAIRs, tracks lineage between full and partial/delta FAIs, and presents a clear audit trail for regulators and customers.

Common FAI Workflow Challenges and Errors

FAI failures often stem from preventable documentation and process errors rather than fundamental manufacturing problems. Understanding these risks helps organizations avoid costly errors and customer rejections.

Documentation issues:

• Using outdated drawings or engineering documentation (revision mismatch)
• Inconsistent characteristic numbering between ballooned drawings and Form 3
• Missing revision updates or engineering change notices
• Incomplete attachment of required certificates and test reports

Metrology and data errors:

• Mis-typed numeric results when transcribing from CMM reports to FAIR forms
• Incomplete gage ID fields or missing calibration evidence
• Misuse of attribute versus variable data for critical dimensions
• Measurement results recorded without units or tolerance context

Process-related problems:

• Performing FAI on engineering samples that do not represent actual production process
• Skipping required special process approvals before FAI build
• Manufacturing under non-standard conditions (different fixtures, unqualified personnel)

Communication gaps:

• Unclear FAI scope communicated between OEM and supplier
• Customer-specific FAIR formats not shared early in program
• Late change notices during FAI builds causing scope confusion
• Delayed responses to customer clarification requests

The cluster article on common FAI errors presents a detailed checklist of avoidable mistakes and detection methods before customer submission.

Platforms like Connect 981 reduce these errors through enforced templates, automated data import from CMM systems, validation checks before submission, and a single source of truth for drawing revisions.

Traceability and Record Retention for FAI

Traceability is central to aerospace safety cases and explains why FAI is so documentation-intensive. The FAIR creates an unbroken chain connecting manufactured parts to their materials, processes, and verification records.

FAI records connect:

• Part serial numbers or lot numbers
• Material lots with heat numbers and mechanical properties
• Special process lots with vendor identification and approval status
• Inspection results with gage IDs and inspector identification
• Responsible parties at each manufacturing and verification step

This chain enables rapid investigation when field issues occur. If a component fails in service, investigators can trace backward from the serial number to the FAI, then to the specific material heat lot, special process vendor, and dimensional verification records.

Typical retention expectations:

Context

Retention Period

Commercial aerospace

10+ years, often through aircraft service life (20-40 years)

Defense contracts

Program life or indefinite per contract requirements

Safety-critical components

Through product lifecycle plus investigation window

Rapid retrieval capability matters for regulatory audits, customer investigations, and accident analysis. Older revisions and superseded FAIRs must remain accessible even after design updates.

The risk of scattered PDFs and spreadsheets across network drives creates compliance exposure. Multi-site operations often struggle with FAIR location and version control, particularly after personnel turnover or facility acquisitions.

Connect 981 centralizes FAIR data, links it to work orders and serial numbers, and provides controlled access to OEMs and tiered suppliers via a shared digital layer.

The cluster article on FAI traceability deep-dives into serial number management, lot tracking, and integration with ERP, MES, and QMS systems.

Digital Systems and Automation for FAI

The aerospace industry is transitioning from paper-based FAIs and standalone spreadsheets toward integrated digital workflows. This shift addresses longstanding pain points while maintaining stringent requirements.

Common manual pain points:

• Repeated data entry across inspection logs, spreadsheets, and FAIR forms
• Inconsistent templates across programs and suppliers
• Difficulty aggregating CMM output files from different equipment brands
• Long FAIR cycle times (multiple days per part)
• High rework rates due to formatting or transcription errors

Digital FAI capabilities:

• Automated drawing ballooning and characteristic extraction from CAD/DPD
• Direct import of CMM and scanner data into Form 3 fields
• Auto-population of material and process information from MES/ERP
• Validation checks before submission (missing fields, calibration status)
• Version control with audit trails

Integration with MES, ERP, and QMS provides shared part master data, process routings, nonconformance linkage, and document control. This reduces duplication and ensures accuracy between systems.

Connect 981 serves as a unified operations platform that:

• Provides digital work instructions including FAI-specific steps
• Captures inspection data at the point of use via mobile devices
• Links FAIRs to work orders, purchase orders, and supplier records
• Offers a shared portal for OEM-supplier FAI collaboration with permissioned access

In aerospace MRO environments, digital FAI systems verify first article repairs or modifications, document new repair procedures, and integrate with maintenance records for product reliability traceability.

The cluster article on digital travelers and FAI focuses on how digital work instructions and FAIRs work together on a connected shopfloor.

AI and Analytics in FAI

Emerging AI and analytics capabilities augment FAI workflows while keeping domain experts in control.

AI-assisted characteristic extraction from CAD models and engineering drawings reduces manual ballooning time. Machine learning models trained on aerospace drawings can identify features, extract dimensions and tolerances, and propose balloon numbering schemes aligned with customer conventions.

Advanced analytics on FAIR data across programs and suppliers identifies systemic issues:

• Recurring nonconformances on specific key characteristics
• Machines or tooling prone to problems (suggesting calibration drift or wear)
• Material suppliers with higher nonconformance rates

Connect 981 uses AI-assisted root cause analysis to highlight high-risk features before they fail in FAI or production. Predictive insights flag characteristics similar to historical problem areas for additional review.

AI augments but does not replace domain experts. Quality engineers, metrologists, and manufacturing engineers retain judgment over design changes, process controls, and supplier qualification decisions.

Reducing FAI Cycle Time Without Sacrificing Compliance

FAIs often sit on the critical path for program launches and design changes. A program awaiting FAI approval cannot begin full production run, which delays revenue and may incur customer penalties.

Typical drivers of long FAI cycle times:

• Late or unclear requirements from OEMs
• Fragmented systems (drawings, specs, FAI forms in different locations)
• Manual data entry and transcription at multiple steps
• Uncoordinated metrology scheduling
• Back-and-forth clarifications with customers

Best practices for acceleration:

Practice

Impact

Early planning and scope confirmation

Prevents rework from unclear requirements

Pre-approved templates and conventions

Reduces formatting questions

Concurrent inspection planning

Eliminates metrology scheduling delays

Digital data capture at point of use

Eliminates transcription errors

Integrated FAIR generation

Cuts preparation time by 75%+

Digital tools cut FAI turnaround through automated data capture, single-click FAIR generation, integrated approvals, and shared visibility for OEMs and suppliers. Organizations report reducing FAI preparation from 16 hours to 4 hours per part using automated approaches.

The cluster article on reducing FAI cycle time offers quantitative examples and case scenarios demonstrating specific acceleration strategies.

FAI in Defense and High-Regulation Contracts

Defense, space, and safety-critical systems often add requirements beyond standard AS9102 FAI. Understanding these additions prevents compliance gaps on regulated programs.

Defense-specific FAI requirements:

• Contract-unique FAI forms replacing or supplementing AS9102 formats
• Additional review gates with government quality representative involvement
• DCMA (Defense Contract Management Agency) witness requirements for certain operations
• Direct linkage between FAI acceptance and payment milestones

Some defense contracts tie FAI approval to program risk reviews. If the FAI reveals unexpected manufacturing challenges, program risk posture escalates, triggering additional oversight.

ITAR and export control implications:

FAI data including drawings, 3D models, and FAIRs may be controlled technical data under ITAR or EAR. This means:

• FAIRs cannot be freely shared with non-U.S. suppliers
• Foreign nationals may require export licenses for access
• Digital systems must incorporate access controls and data segregation
• Audit trails must document who accessed controlled data

Connect 981’s shared yet permissioned environment supports collaborative FAIs on defense programs while respecting data segregation. Access controls, encryption, and user authentication prevent unauthorized access to controlled FAI data.

The cluster article on FAI in defense contracts addresses these topics with detailed examples including common clauses and flow-down language.

The Future of Automated and Connected FAI

First article inspection will evolve significantly over the next 5–10 years as model-based definition and automated metrology become standard across the aerospace industry.

Model-Based Definition (MBD) and Digital Product Definition:

MBD embeds all design intent, tolerances, and annotations in 3D CAD models. This enables:

• Direct-to-CAD FAI without reliance on 2D drawings
• Automatic characteristic extraction for ballooning
• CMM software reading tolerance data directly from models
• Reduced manual interpretation and ensure accuracy

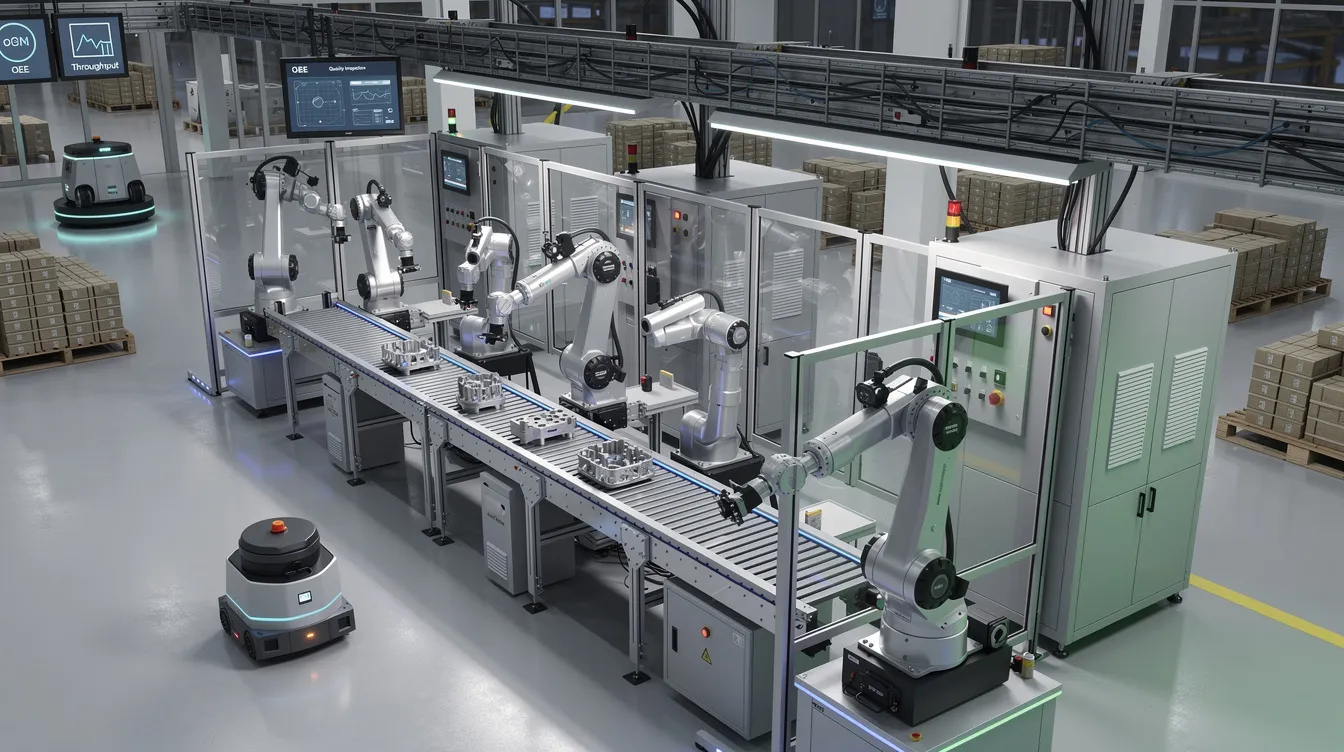

Automated metrology trends:

• Robotic CMM cells performing hands-off measurement
• Inline 3D scanners feeding directly into FAIR generation
• Vision-based inspection capturing attribute data automatically
• High-volume 100% inspection replacing statistical sampling

Digital thread integration:

FAI data will increasingly connect to PLM, ERP, MES, QMS, and fleet maintenance systems. This enables:

• Closed-loop quality: FAI observations feed directly into control plans
• Lifecycle traceability: FAI linked to serial numbers and maintenance records
• Continuous improvement: Aggregate FAI analytics identify systemic issues
• Predictive intelligence: ML models flag high-risk designs before FAI

Platforms like Connect 981 serve as the connective layer between these systems, enabling standardized FAI workflows across global factories and multi-tier supplier networks. Industry standardization of digital FAIR data exchange will reduce proprietary silos and enable easier OEM-supplier collaboration.

The future state is a scenario where suppliers receive design specifications, automatically generate FAI plans, manufacture with digital work instructions, compile FAIRs from CMM data and material certifications, submit via digital portal, and receive approval within days rather than weeks.

Organizations that standardize FAI workflows reduce cycle time, cut costly errors, and maintain customer confidence through audit-ready documentation. The path forward requires evaluating current FAI maturity, identifying manual bottlenecks, and adopting digital tools that integrate with existing systems.

Connect 981 enables aerospace manufacturers and suppliers to modernize their FAI process without replacing ERP or MES infrastructure. Request a demo to see how digital FAI workflows can work for your next project.
